10.1 Inch HDMI Display Screen 1280*800 Resolution HDMI LCD Module With 6H Hardness Tempered Glass Cover

YQX28-101 10.1 Inch IPS HDMI LCD Display with 1280*800 Resolution 5 Point Capacitive Touch Screen

• 10.1 inch IPS high-definition display screen - Wide viewing angle | True color reproduction | Excellent picture quality
• 1280 *800 resolution - HD vision | Exceptionally detailed display
• New touch panel - Tempered glass cover | 6H hardness rating for durability and scratch resistance
• High sensitivity capacitive touch screen - Precise touch response | Supports up to 5 simultaneous touch points
• HDMI interface - HD input capability | Functions as HDMI display
• Multi-device compatibility - Works with Raspberry Pi, Banana Pi, and BeagleBone development boards | Compatible with PS4, XBOX360, Nintendo Switch and other game consoles | Connects to TV boxes and digital cameras (display only)
• Multi-system support - Raspbian, Kali Linux, Ubuntu, Kodi, Win10 IOT (touch driver-free) | Office software/8/10/11 (touch driver-free)
• CE and ROHS certified

1. Download Raspbian Official Image
   Download URL: https://www.raspberrypi.org/downloads/raspbian/
   Username: pi Password: raspberry
2. Download Ubuntu Mate Official Image
   Download URL: https://ubuntu-mate.org/download/
   The user name and password can be set by yourself after startup
3. Download Kail Official Image
   Download URL: https://www.offensive-security.com/kali-linux-arm-images/
   Username: kali (The old version is root) Password: kali(The old version is toor)
4. Download Retropie Official Image
   Download URL: https://retropie.org.uk/download/
   Username: pi Password: raspberry

1. Download and install tool software (If they are already installed, this step can be ignored)
   SD card format software SDCard Formatter download URL:
   https://www.sdcard.org/downloads/formatter_4/
   Image burning software win32diskimager download URL:
   https://sourceforge.net/projects/win32diskimager/
2. Format SD card
   Insert the SD card into the card reader → Insert the card reader into the computer → Open the SDFormatter software → Select SD card → Select quick format (generally select quick format, other options can be selected according to your own needs) → Click the Format button → Select "Yes" → Click OK after formatting.
3. Burn Image

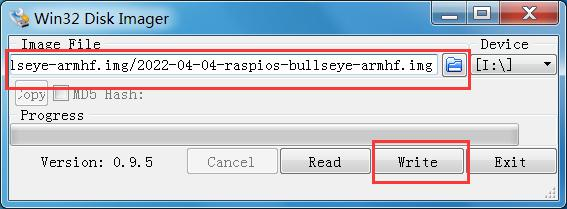

   Open the win32diskimager software → Select the image file to be burned (xxx.img) → Select SD card → Click the "write" button → Select "Yes" → Wait for the burning to complete (the whole process lasts about 10 minutes)

After the above steps are completed, pop up the SD card on the computer and insert it into the SD card slot on the back of the raspberry pie.

Connect the HDMI interface and touch interface of the display screen to raspberry pie, connect the power supply of raspberry pie, and start the machine to display and touch normally.
